Silica Sand for Foundry and Casting
A casting can only be as accurate as the cavity it was poured into. Long before molten metal reaches the mould, decisions about the moulding sand have already shaped the result: whether gases escape or get trapped, whether the surface comes out clean or with sand fused to it, and whether thin sections hold their shape or wash away under the metal stream. Many foundries chase porosity, rough surfaces or veining at the pouring stage when the root cause sits in a sand specification agreed months earlier.
Silica sand remains the most widely used base aggregate for sand moulds and cores, because it combines heat tolerance, availability and workability at a cost that alternative sands rarely match. But "silica sand" on a purchase order says very little. Grain size, size distribution, grain shape, fines, moisture and chemistry all change how a sand behaves with a binder and against molten metal.
This guide explains those properties in practical terms: what each one does in the mould, how grain size trades surface finish against permeability, how to read a sieve analysis instead of trusting a mesh label, and what to ask a supplier before committing to a grade. It is written by Pacific Minerals, a mine-owning silica sand manufacturer and exporter in Bhuj-Kutch, Gujarat, for foundry engineers and the procurement teams who buy on their behalf.
What Is Foundry Silica Sand?
Foundry silica sand is quartz-based sand that has been washed, graded and tested so that its grain size, size distribution, grain shape, fines, moisture and chemistry suit a specific moulding or core-making process.
Silica sand consists mainly of quartz, the crystalline form of silicon dioxide (SiO₂). Quartz is hard, resists abrasion during mixing and handling, and has a melting point of roughly 1,700°C, so the grains stay solid while iron, steel or non-ferrous alloys solidify against them. Quartz is also chemically stable against most alloys at their pouring temperatures.
What separates foundry sand from ordinary construction or general-purpose sand is control. A foundry grade is typically washed to remove clay and organic matter, dried or delivered at a known moisture, and screened to a defined particle-size distribution. Its chemistry and grain shape are characterized rather than left to chance.
That control matters because no single silica sand suits every casting process. A sand that runs well in a clay-bonded green sand line for grey iron may be a poor match for a resin-bonded steel core, where acid demand, fines and thermal expansion carry more weight. Selection starts from the process, not from the product label.
Why Is Silica Sand Used in Foundry Moulding?
Silica sand is used in foundry moulding because it tolerates molten-metal temperatures, forms a grain structure that is both permeable and bondable, reproduces pattern detail, and can be graded and reclaimed economically.
A sand mould has four jobs. Looking at each one explains why silica became the default.
It has to hold its shape while it is being heated. The mould face goes from room temperature to near pouring temperature in seconds. Silica's refractoriness keeps the grains from melting or softening at the interface. Its thermal stability is good but not perfect — quartz undergoes a sudden volume expansion at about 573°C — which is why expansion-related defects are a known part of silica sand practice, covered later in this article.
It has to let gas out. Pouring releases steam from moisture, decomposition gases from binders and additives, and the air already in the cavity. The spaces between sand grains provide the escape route. Silica can be graded into grain sizes and distributions that keep those pathways open.
It has to be strong enough to resist the metal. Quartz grains accept a coating of clay or resin and form a bonded network that resists metallostatic pressure, handling and erosion from the metal stream.
It has to be economical to make and reuse. Silica is available in large deposits, can be washed and graded to tight fractions, and can be reclaimed in many binder systems. Zircon, chromite and olivine sands offer lower thermal expansion or higher refractoriness, but at a higher cost, so foundries tend to use them selectively — for facing sand or critical cores — with silica as the bulk aggregate.
Key Properties of Silica Sand That Matter in Casting
1) Grain Size
Grain size is expressed either as the fractions retained on a set of sieves or as a single weighted average such as the AFS Grain Fineness Number (GFN), which is calculated from a sieve analysis. A higher GFN indicates finer sand. Grain size governs surface finish, permeability and binder demand more directly than any other property, which is why it gets its own section below.
2) Grain Shape
Grains are described as rounded, sub-rounded, sub-angular or angular. Rounded grains flow easily, pack uniformly and have the lowest surface area per tonne, so they need less binder for the same strength. Angular grains have more surface area, need more binder and pack less efficiently, though they can interlock in clay-bonded moulds. Sub-rounded sand is a common practical compromise. Shape is largely determined by the deposit and processing, so it is worth asking about rather than assuming.
3) Grain Distribution
Two sands with the same average fineness can behave very differently. A narrow distribution, concentrated on two or three sieves, gives a more open, permeable mould. A broader distribution lets smaller grains fill the gaps between larger ones, producing a denser mould with better finish and resistance to metal penetration but lower permeability. For many foundries, batch-to-batch consistency of the distribution matters even more than its exact shape, because binder additions and compaction settings are tuned to it.
4) Refractoriness
Refractoriness is the sand's ability to withstand the casting temperature without sintering or fusing. Pure quartz performs well, but impurities such as feldspar, alkalis and iron oxides lower the temperature at which grains begin to sinter. At high pouring temperatures, that can show up as sand burnt onto the casting surface. Higher-temperature alloys therefore call for cleaner sand.
5) Permeability
Permeability measures how easily gas passes through a compacted sand specimen, and foundries test it on standard rammed samples. If gases cannot move out through the mould faster than they are generated, they push into the solidifying metal instead.
6) Moisture
Moisture plays opposite roles depending on the system. In green sand, water activates the bentonite and must be held within a narrow working range. In chemically bonded systems, the sand should be dry: moisture interferes with resin curing, weakens the bond and adds gas. Moisture as delivered also affects bulk handling, storage and the true weight of sand being paid for.
7) Clay and Fines
In foundry terminology, clay (AFS clay) refers to the very fine particles, roughly below 20 microns, that wash out of the sand, while fines are the finest sand fractions. Because they have a large surface area, excess fines absorb binder and water, reduce permeability and increase gas generation. Washing reduces them. A controlled amount of finer grains can be part of a deliberate distribution; uncontrolled fines are the problem.
8) Chemical Composition
Foundries typically look at SiO₂ content alongside iron oxide, alumina, alkalis and carbonates. Which values matter depends on the metal and binder. In acid-catalysed no-bake resin systems, alkaline impurities neutralise the catalyst, so acid demand value (ADV) and pH are checked. In steel casting, low impurity levels help resist reactions between the metal and the mould. Loss on ignition (LOI) indicates organic or combustible content. There is no single chemistry target for all foundries.
Effect on the mould | Finer sand | Medium sand | Coarser sand |
|---|---|---|---|
Surface finish | Smoother; captures fine detail | Balanced | Rougher texture |
Permeability | Lower | Moderate | Higher |
Resistance to metal penetration | Higher | Moderate | Lower unless a coating is used |
Gas-defect risk | Higher if venting is inadequate | Moderate | Lower |
Mould packing | Denser | Moderate | More open |
Tends to be considered for | Thin walls, fine detail, many non-ferrous castings, facing sand | General jobbing work | Heavy sections, large moulds, cores needing strong venting |
Surface finish and detail. Molten metal replicates the texture of the mould wall. Finer grains leave smaller gaps at the surface, so lettering, sharp corners and thin ribs come out cleaner and fettling time drops.
Permeability and gas evacuation. The same small gaps that improve finish restrict gas flow. A fine sand in a thick-section casting with heavy core gas can trap gas unless venting is improved.
Binder requirements and strength. A tonne of fine sand has far more grain surface to coat than a tonne of coarse sand. Holding strength constant, finer sand consumes more bentonite or resin, which raises cost and increases the gas generated on pouring.
Penetration. Under metallostatic pressure, liquid metal can push into the gaps of a coarse, open mould, especially in heavy sections. Finer or better-graded sand, higher mould density or a refractory coating counters this.
The right grain size therefore depends on the metal being cast, casting geometry and section thickness, the moulding process, the required surface finish, the binder system, and the foundry's venting and compaction practice. Coatings shift the balance too: a well-applied refractory wash lets some foundries run a coarser, more permeable sand while still
achieving an acceptable surface.
Mesh Size vs Particle Size: What Foundry Buyers Should Understand
Mesh describes the sieve, not the sand. A full sieve analysis — the percentage retained on each sieve in a defined stack — describes the sand.
Mesh refers to the number of openings per linear inch of a sieve screen, so a 50-mesh sieve has smaller openings than a 30-mesh sieve. The confusion starts when a single number is used as a product name. "30 mesh sand" could mean sand that passes a 30-mesh sieve, sand retained on it, or sand whose bulk sits somewhere near it. Sieve series also differ slightly between standards such as ASTM E11, ISO 3310 and India's IS 460, so the same mesh number does not always mean an identical aperture.
A single mesh number also says nothing about spread. Two lots labelled identically can have very different amounts of coarse grains and fines, and behave differently in the mould as a result.
Clear specifications usually state:
• the sieve standard and the exact sieves in the stack;
• the acceptable percentage range retained on each key sieve;
• a maximum for material passing the finest sieve (fines) and for clay content;
• a GFN target and tolerance, if the foundry works with AFS numbers;
• the test method and the sampling basis (per lot, per truck, per container).
When buyer and supplier exchange sieve analyses in the same format, disputes about "the wrong mesh" largely disappear.
Common Silica Sand Sizes Used in Foundry Applications
Foundry specifications are often written as ranges such as 16–30, 20–30, 30–50, 30–60, 40–70 or 50–100 mesh. A range like 30–50 generally means the bulk of the sand passes the 30-mesh sieve and is retained on the 50-mesh sieve, with limits on what falls outside. As a loose tendency, coarser ranges appear where venting and low binder demand matter, such as heavy castings and some cores; middle ranges suit a lot of general work; and finer ranges appear where surface finish and detail lead, including much non-ferrous and precision work.
These are not universal industry standards. Two foundries casting similar parts may specify different ranges because their binders, compaction equipment or coatings differ, and many foundries define their sand by a full distribution rather than a range label.
Pacific Minerals produces silica sand in 8, 16, 24, 30 and 50 mesh and can discuss standard and custom mesh and custom AFS / particle-size requirements according to the buyer's application and specification.
Silica Sand for Different Metal Casting Applications
Casting temperature, mould design, binder system and process all influence sand selection, so the notes below describe tendencies rather than rules.
Ferrous Casting
Cast iron. Grey and ductile iron are widely produced in green sand, often with carbonaceous additives that help produce a cleaner surface. Silica sand is well suited to iron at typical pouring temperatures, with attention to fines, clay content and distribution so the sand system stays stable over repeated cycles.
Steel. Steel is poured hotter than iron, which increases thermal load on the mould. Iron oxide formed on the metal can react with silica to form fayalite, a low-melting compound associated with burn-on and penetration. Steel foundries therefore tend to specify cleaner sand with lower impurities, pay close attention to distribution and mould density, use refractory coatings, and sometimes switch to zircon, chromite or olivine for facings or critical cores.
Non-Ferrous Casting
Aluminium. Aluminium alloys are poured at much lower temperatures than ferrous metals, so refractoriness is rarely the limiting factor. Priorities shift toward surface finish, fine detail and controlled gas, and finer sands are common.
Copper and brass. Copper-base alloys are poured hotter than aluminium, and their fluidity means metal can penetrate open mould surfaces. Foundries balance finer or well-graded sand for finish and penetration resistance against the permeability needed for gas release.
How Silica Sand Works With Foundry Binders
Silica grains on their own have no strength. A binder coats each grain and bridges the contact points between neighbours, so how the sand interacts with that binder decides mould strength, gas and cost.
Clay-bonded systems use bentonite activated by water. The clay forms a plastic coating that allows the sand to be compacted around a pattern and to spring back slightly on stripping. Bond strength depends on clay content, moisture and how thoroughly the sand is mulled.
Resin (chemically bonded) systems include no-bake processes such as furan, phenolic urethane and alkaline phenolic, as well as cold box and shell processes widely used for cores. These binders are sensitive to sand surface area, fines, moisture, temperature and, for acid-cured resins, acid demand.
Inorganic systems such as sodium silicate are also used, particularly where lower
emissions are a priority.
The procurement point is simple: sand and binder costs are linked. A cheaper sand with more fines or angular grains can raise resin consumption per tonne of castings, increase gas and reduce permeability. Comparing sand quotations on price per tonne alone misses this. Any change of sand source should be trialled with the binder dosage checked, not just swapped in.
Green Sand Casting and Silica Sand
Green sand is a moulding mixture of silica sand, bentonite clay, water and additives. "Green" means the mould is moist and uncured when metal is poured — not that the sand is green in colour.
Silica is the bulk of the mix and provides refractoriness and grain structure. Bentonite, activated by water, provides the bond. Moisture has to sit in a working window: too little and the mould becomes friable, too much and excess steam and weak, soft moulds follow. Compaction, whether by jolt-squeeze or high-pressure moulding lines, sets mould density, which in turn affects both strength and permeability.
Green sand is reused cycle after cycle, and this is where new sand quality has a lasting effect. Heat near the casting burns out part of the bentonite and additives, producing dead clay and fines that build up in the system. Foundries add new sand and fresh bond and extract dust to keep the system in balance, monitoring it with tests such as compactability, green compression strength, permeability, moisture and active clay. New sand with a consistent distribution and low fines makes that balance easier to hold.
Sand Casting Defects and the Role of Moulding Sand
Sand properties contribute to many casting defects, but they are rarely the only cause. Binder system, moisture, venting, compaction, pouring conditions, gating design, metal temperature and mould design all interact. Good root-cause analysis looks at the whole process before blaming — or changing — the sand.
Blowholes
Smooth-walled cavities, usually near the surface, formed when gas from the mould or core enters the metal. Sand-related contributors include low permeability, excess moisture, high fines and high binder content. Poor venting, damp cores and low metal temperature can produce the same result.
Other Gas-Related Defects
Pinholes and subsurface porosity can come from mould gas, but also from gas dissolved in the metal itself. Distinguishing between them usually requires checking melt practice as well as sand.
Poor Surface Finish
A rough or pitted surface can reflect coarse or poorly distributed sand, low mould density or an inadequate coating. High pouring temperature and slow solidification also make it worse.
Metal Penetration
Metal entering the gaps between grains, leaving sand fused into the casting surface. Coarse, open sand and low mould density contribute, but metallostatic pressure, high pouring temperature and metal–mould reactions in steel are often the bigger drivers.
Veining
Thin, fin-like projections, most common on cores, caused when the sand surface cracks under thermal stress. Silica's expansion at the quartz inversion is a key factor. Grain distribution, binder type, anti-veining additives and coatings are the usual levers.
Sand Inclusion
Sand grains trapped in the casting, often from loose sand in the cavity or fragments broken off the mould. Weak bond and friable edges contribute, as do turbulent gating and poor mould cleaning.
Mould Erosion
Wear of the mould wall where the metal stream impinges, carrying sand into the casting. Low bond strength and high fines or dead clay make sand more erodible; gating that directs a fast stream against a mould wall is often the underlying cause.
How to Select Silica Sand for a Foundry
Foundry silica sand is selected according to the casting process, the metal, the moulding system, grain characteristics and the required casting finish — confirmed through a sieve analysis, chemistry and a production trial.
Factor | What to decide |
1. Metal being cast | Pouring temperature and metal–mould reactivity set how clean and refractory the sand must be. |
2. Casting process | Green sand, no-bake, cold box, shell or other — each has different sensitivities. |
3. Moulding system | Compaction method and mould density influence the grain size that will work. |
4. Grain-size requirement | Balance finish against permeability for your typical section thickness. |
5. Particle-size distribution | Define percentage retained per sieve, not just a label. |
6. Grain shape | Affects binder demand and flowability, especially in resin systems. |
7. Fines | Set a maximum; fines drive binder consumption and gas. |
8. Moisture | Dry for chemically bonded systems; known and consistent for green sand. |
9. Chemical composition | SiO₂, iron oxide, alkalis, carbonates, ADV and LOI as your process requires. |
10. Refractoriness | Critical for steel and heavy sections; less so for aluminium. |
11. Testing requirements | Which tests, which method, how often, and who performs them. |
12. Packaging | Bag type and size, bulk options, and protection from moisture in transit. |
13. Supply consistency | Batch-to-batch repeatability of distribution matters as much as the spec itself. |
Purchasing checklist:
• Written specification with sieve stack, tolerances and fines limit
• Chemistry requirements tied to your metal and binder
• Moisture requirement stated as delivered
• Sample approved through a production trial, not only a lab test
• Test reports agreed for every shipment
• Packaging and delivery schedule confirmed
What Should a Foundry Ask a Silica Sand Supplier?
Question | Why it matters |
What is the SiO₂ content, and what are the main impurities? | Purity affects refractoriness and metal–mould reactions. |
What is the particle-size distribution? | Tells you how the sand will pack and vent. |
What sieve analysis is available, and to which standard? | Allows like-for-like comparison with your current sand. |
What is the moisture level as dispatched? | Affects resin cure, green sand control and paid weight. |
What percentage of fines and clay does it contain? | Drives binder demand and permeability. |
What is the grain shape? | Influences binder consumption and flowability. |
Can a custom mesh be supplied? | Your process may not match a standard grade. |
Can a sample be provided for a trial? | Only a production trial confirms fit. |
Can third-party testing be arranged? | Independent verification supports supplier approval. |
What documentation accompanies each shipment? | Test reports provide traceability for incoming inspection. |
What packaging is available, including export packaging? | Protects moisture level and grading in transit. |
What quantity can be supplied, and on what schedule? | Confirms the supplier can support continuous production. |
How is batch-to-batch consistency controlled? | Specification means little if lots drift. |
Testing and Quality Control of Foundry Silica Sand
Incoming sand is usually checked against the agreed specification using a combination of the tests below. Which ones apply depends on the foundry's process.
• Sieve analysis and particle-size distribution — confirms grading and allows GFN to be calculated; the most important routine check.
• Moisture — confirms suitability for the binder system and the true dry weight received.
• Chemical composition and SiO₂ — typically by XRF; confirms purity and impurity levels relevant to the alloy.
• Clay content and fines — measured by washing; predicts binder demand and permeability.
• Grain characteristics — shape and surface texture under magnification.
• Loss on ignition — where organic or combustible content matters, including reclaimed sand.
• Acid demand value and pH — for acid-catalysed resin systems.
• Other application-specific tests — such as sintering behaviour, thermal expansion or bulk density.
At Pacific Minerals, silica sand passes through a batch-wise quality assurance process that includes sieve analysis, moisture content checks, impurity screening, load verification and pre-dispatch inspection, and each shipment is supported by lab test reports. Additional tests can be arranged according to the buyer's specification.
Why Custom Mesh Matters for Foundries
A foundry's sand specification is usually the outcome of years of tuning: binder additions, compaction pressure, coating practice and venting have all been adjusted around one sand. A standard grade that is close but not identical can shift permeability or binder demand enough to show up in scrap rates.
Custom particle-size distributions let a supplier match the foundry's existing curve, move it deliberately (for example, to reduce fines or tighten the spread) or blend fractions to reach a target GFN. The value lies in agreeing the details before production and shipment: a written specification with tolerances, the test method, sample approval, and a retained reference sample for comparing future lots.
Pacific Minerals offers custom mesh / particle-size requirements according to customer specifications, supported by multi-stage washing plants and refined screening and grading systems. Feasibility and tolerances are agreed case by case.
"We test every batch so you never have to gamble on a shipment."
Pacific Minerals Silica Sand for Foundry Applications
Pacific Minerals is a silica sand manufacturer and exporter operating its own mining site in Dhaneti, Bhuj-Kutch, Gujarat, supplying domestic and international B2B buyers. For foundry customers, that means:
• silica sand in 8, 16, 24, 30 and 50 mesh, with custom mesh and particle-size distributions according to specification;

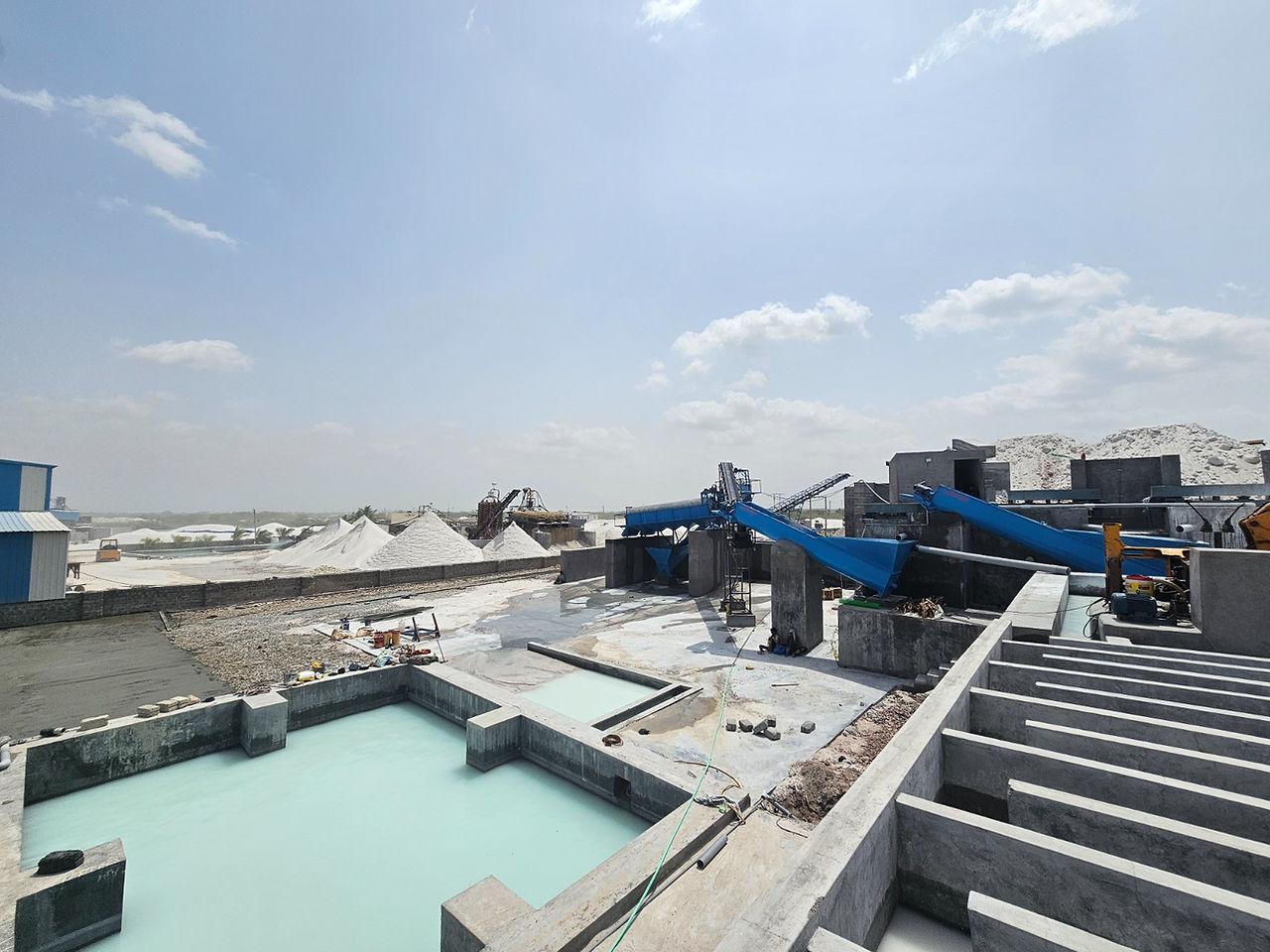

• a semi-automated, 24×7 production facility with multi-stage washing and refined screening and grading;
• batch-wise QA with lab test reports supporting each shipment;
• a location less than two hours from Mundra and Kandla ports for export dispatch;
• supply contracts, annual volume commitments and scheduled dispatch cycles for buyers who need continuity;
Foundry buyers can share their process, metal and current sieve analysis, and the team will advise on the nearest standard grade or a custom specification.
Conclusion
Choosing silica sand for foundry use means matching the sand to the process, not picking a grade from a price list. Start with the metal and moulding system, then define grain size and — more usefully — the full particle-size distribution. Check that permeability and refractoriness suit your section thicknesses and pouring temperatures, keep moisture and fines within limits your binder can tolerate, and agree the tests and documentation that will accompany every lot.
Above all, look for consistency. A foundry can tune its process around almost any reasonable sand, but not around one that changes from delivery to delivery. A written specification, an approved trial sample and test reports with each shipment protect both the castings and the relationship with the supplier.
If you are qualifying a new source or reviewing your current sand, Pacific Minerals can review your requirements. Share your casting process, metal, binder system and current sieve analysis at info@pacificmineral.in or +91 91733 80265, and the team will recommend a standard or custom grade and arrange a sample for trial.
